Case study: bring the ILX MultiPad to Nexting

MultiPad is an STM32F103VET6 desktop control keyboard published on the Lichuang open hardware platform, with keys, rotary controls, and display openings. The steps below keep its original controls and connect them to Nexting through a Bridge.

The upstream page confirms the STM32F103VET6 MCU, Electron Host, and GPL-3.0 license. Confirm the programming entry, USB protocol, and BLE implementation from the board and source; a Type-C connector is not proof of UF2 drag-and-drop flashing.

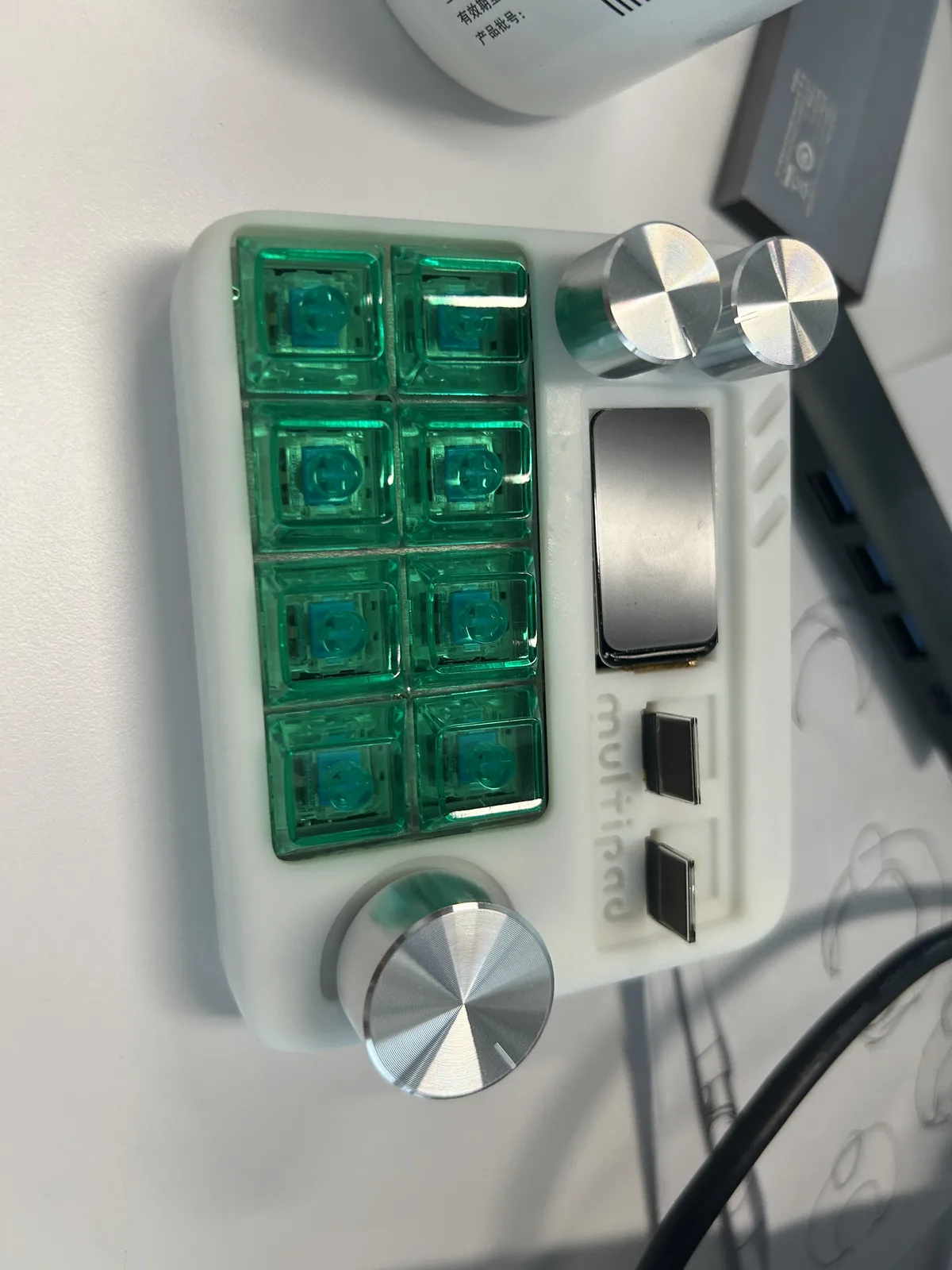

MultiPad front with transparent mechanical keys, rotary controls, and display openings — Front: keys, rotary controls, and display openings. The firmware chooses the mapping.

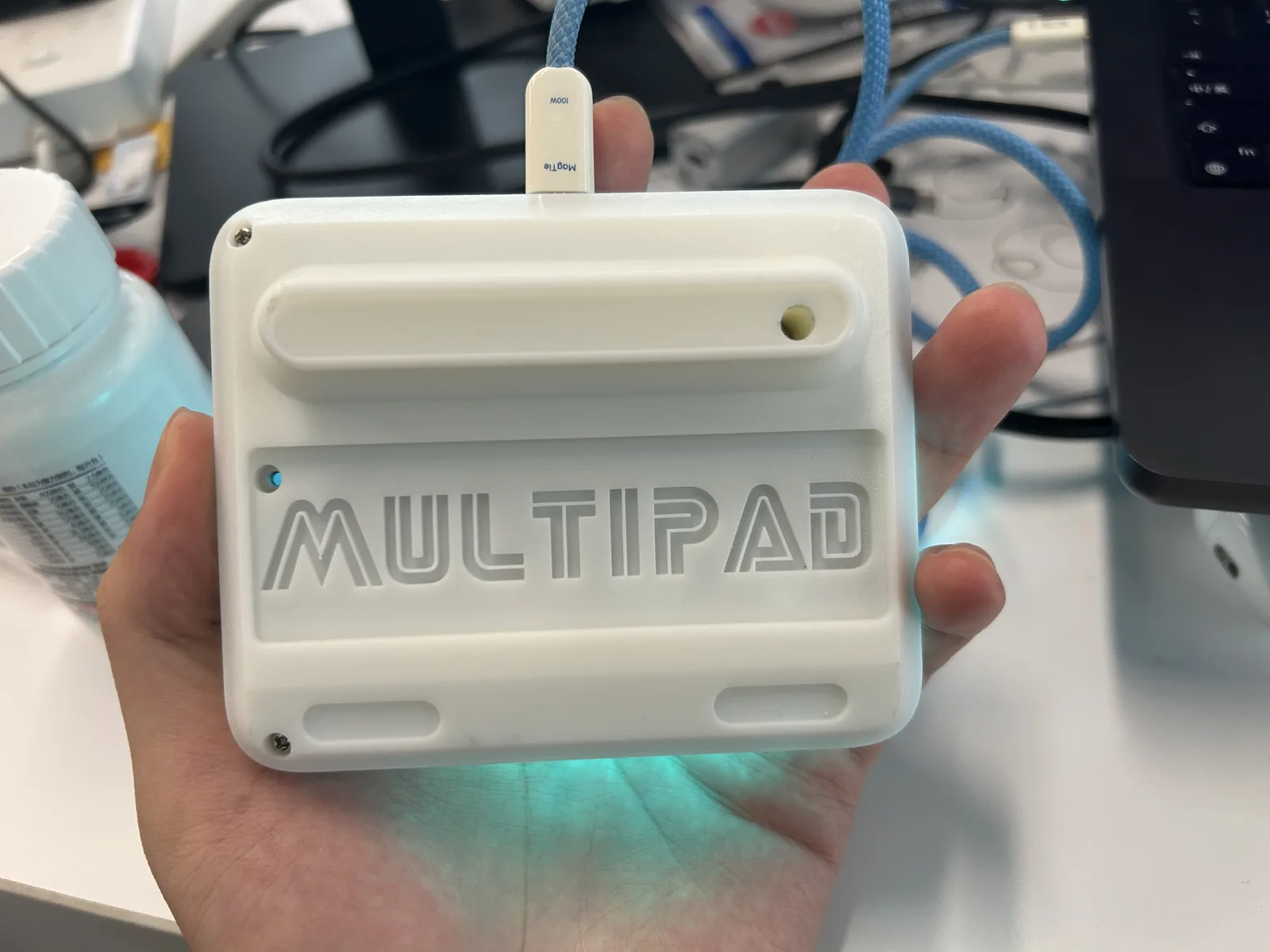

MultiPad enclosure back with a USB-C cable — Back: the Type-C connector is visible; confirm its download role from the schematic and board.

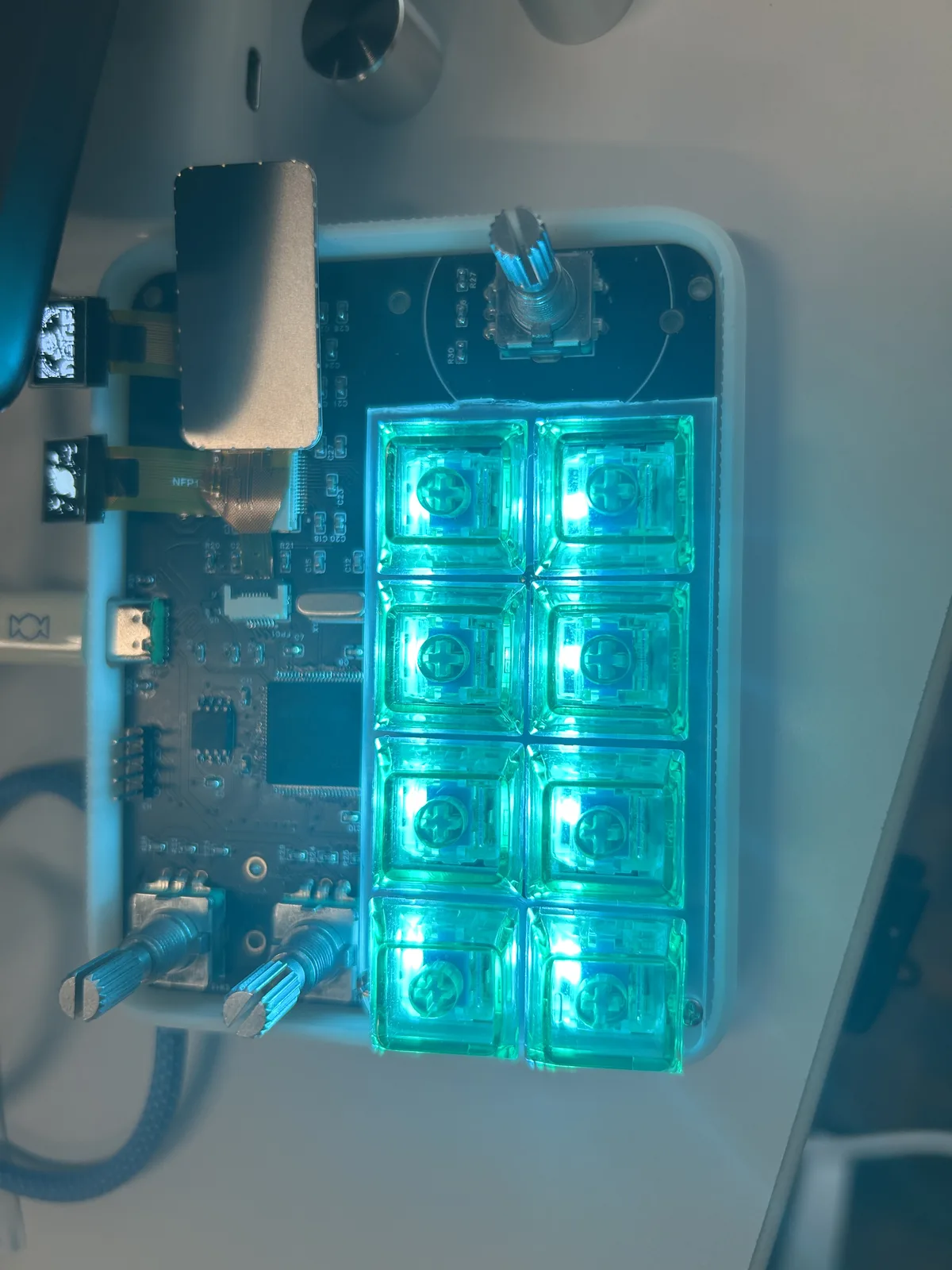

MultiPad opened to show its circuit board — Opened: the STM32 board, controls, and display module are visible.

Open the upstream MultiPad project Open the Nexting Devices SDK

Hardware and protocol notes

Source	Description
Upstream MultiPad project page	STM32F103VET6 MCU, Electron desktop Host, and GPL-3.0 project license.
Your physical-board photos	Transparent mechanical keys, several rotary controls, display openings, and a Type-C connector. Confirm the programming entry and pins on the board.
Nexting Devices SDK	approval/1, status/1, keys/1, rotary/1, and text/1 express generic device intent; MultiPad reaches these Profiles through a Bridge.

Connection path

MultiPad
STM32F103VET6

↔ USB / original Host link

Nexting Bridge
USB events → SDK messages

↔ encrypted BLE

Nexting Host ↔ Agent
Trusted Host on phone or computer

The Nexting device contract uses encrypted BLE GATT. Keep MultiPad's original firmware and Electron Host, then run a computer Bridge that translates USB/Host events into Nexting Profiles. Direct phone discovery requires a BLE companion or new wireless firmware.

Control mapping: the protocol does not choose the key

MultiPad control (example)	Nexting intent	Profile	First implementation
One key you choose	allow for a one-time request	approval/1	Declare the mapping in firmware or the Bridge; there is no fixed Allow key.
Another key you choose	deny for a one-time request	approval/1	Return only the choice for the current request ID.
Any rotary control	direction or delta event	rotary/1	Record delta in the Bridge first, then map it in the Host.
Rotary press or another key	confirm, select, or command event	keys/1 / navigation/1	Let the Host assign meaning instead of baking it into the enclosure.
Display or screen opening	Agent state, title, or short text	status/1 / text/1	Confirm the controller and resolution before declaring Device Info.

Mapping sketch (not vendor MultiPad firmware)c

/* Physical slots belong to your MultiPad firmware. */
if (event.slot == MULTIPAD_CONFIRM_SLOT &&
    event.gesture == NEXTING_DEVICE_GESTURE_PRESS) {
    nexting_device_state_choose(
      &approval, NEXTING_DEVICE_CHOICE_ALLOW, now_ms, &answer);
    transport_send(answer);
}

/* Another control can map to deny, navigation, or rotary. */

Firmware preparation

Preserve the original firmware
Use the original Electron Host to verify keys, rotary controls, displays, and Type-C first. Save the original image or at least a known recovery path.
Identify the STM32 programming entry
After opening the board, use the schematic and silkscreen to locate SWD, Boot0/UART, or a USB download chip. Type-C is a connector shape, not proof of UF2 drag-and-drop.
Build the Bridge before changing the MCU
If the original firmware already reports input to a computer, implement the USB/Host-to-Nexting adapter first. It is safer and reversible.
Flash only a matched artifact
Flash only after the build artifact matches STM32F103VET6, the boot mode, and the board wiring. The Nexting Zephyr UF2 is not valid for this board by default.

There is no Nexting firmware that can be flashed to MultiPad directly. Confirm the STM32 programming entry, board wiring, and matching build artifact before adding the exact tool, command, format, and rollback steps.

Verification order: every step has an observable result

Order	Verification	Pass condition
1	Operate every control with the original Host	The original firmware behavior is intact.
2	Have the Bridge report identity and capabilities	Host sees stable model, firmware, and profiles.
3	Map only one key to approval/1	One request produces one allow or deny; duplicates do not execute twice.
4	Round-trip rotary and display state	Direction, delta, status, and disconnect clearing are observable.
5	Unplug, reconnect, expire, and roll back	Expired requests fail, stale state clears, and the original firmware is recoverable.
